SAS 9.2 OLAP Cube Identity Driven Member Level Security

This post was kindly contributed by platformadmin.com - go there to comment and to read the full post.

Identity-driven member level security for SAS 9.2 OLAP cubes, as the name suggests, uses the identity of the requesting user to restrict access to specific members of a dimension, and in so doing control the subset of cube data that the user has access to. Imagine that you have an OLAP cube containing sales data for all sales people, but an individual sales person is restricted to only seeing a subset of that data. Among all of the other dimensions, perhaps one of the dimensions in the cube has the sales person’s user id contained within it. We can construct an identity-driven MDX expression that can be used to filter the cube data on that dimension to only include members that match an identity attribute such as user id. Of course there are also other ways of using other identity attributes to limit access to cube data but I’ll keep it simple in this example.

To quote from SAS® 9.2 OLAP Server: User’s Guide > What’s New in the SAS 9.2 OLAP Server > Security For Cubes documentation:

Identity-driven security enables you to substitute identity values in a permission condition. It enables you to insert a placeholder into the permission condition that, at query time, gets resolved to a string that represents the user identity.

You can see the various identity value placeholder properties available to you in: SAS® 9.2 OLAP Server: User’s Guide > Modifying and Maintaining Cubes > Cube Security > Identity-Driven Security. Some of the ones that we might use with an individual user include:

SAS.Userid – the normalized user id for the person querying the cube (e.g. BILLY@MYDOMAIN)
SAS.IdentityName (or SAS.PersonName) – the name of the person querying the cube, as seen in the SAS Management Console User Manager plug-in (e.g. Billy Baxter)
SAS.ExternalIdentity – a site specific identifier for people that have been bulk-loaded into metadata from directories such as Active Directory, OpenLDAP etc. This could be an employee number for example (e.g. e12345678)

In this post I’m going to highlight a simple example for a couple of reasons. Firstly, whilst the documentation includes lots of general examples, I couldn’t find many that demonstrate the use of an identity-driven member level security filter. Now I can refer to this post when I need to remember how it’s done. Additionally, during my investigation, I kept getting stumped by an MDX syntax error dialog during the definition of the permission condition. It took me a while to discover that I could just accept the error because at run-time, when the identity substitution happens, the MDX will become syntactically valid. Publishing my experiences might help others save themselves a bit of time and frustration too.

My example cube was built from a SAS table that included a sales person user id column. The value of that column for each row was the user id for the sales person that had access to that data – i.e. that row would contribute to the cube subset that the sales person would be able to see when they query the cube. The format of the user id in that column was quite specific. It was in a normalised format, as explained in the SAS documentation. The user id was converted to uppercase and included a domain suffix on Windows. In Windows environments it would most likely be in the format USERID@DOMAIN (e.g. BILLY@MYDOMAIN), whereas in some UNIX environments it might be in the format USERID (e.g. BILLY). If you don’t know what the format is for your environment you can probably work it out by looking in the SAS Metadata Server logs or turning on some of the debugging options for the SAS OLAP Server. If you don’t get the format correct you are likely to end up with an MDX filter that filters out everything so there is nothing to display!

Information on how to set up member level security on a dimension can be found in the SAS® 9.2 OLAP Server: User’s Guide > Cube Building and Modifying Examples > Setting Member Authorizations On A Dimension. I won’t duplicate that information here, suffice to say that in my example cube I want to apply an identity-driven member level security filter on normalized userid members in the lowest level of a DimSalesPerson dimension using the SAS.UserId property. I want it to apply to all known SAS identities (i.e. SASUSERS group) so I start out by adding an explicit grant of the Read permission to the SASUSERS group on the DimSalesPerson dimension in the cube. This enables the Edit Authorization… button that I click to open the Add Authorization dialog. I select the radio button for Create an advanced MDX expression using the expression builder then click the Build Formula… button. I can then enter the MDX expression to filter the cube data for the current user identity.

When constructing the MDX filter expression you can insert placeholders for Identity Values (such as SAS.Userid) which will be substituted at run-time with the appropriate value corresponding to the user making the request. These Identity Values need to be in a specific format SUB::IdentityValueName (e.g. SUB::SAS.Userid). Whilst I couldn’t find the format documented anywhere, you will see an example of it if you use the Build Formula dialog’s Data Sources list to add an Identity Value into the expression. There is also an example screenshot showing SUB::SAS.IdentityGroups at the bottom of SAS® 9.2 OLAP Server: User’s Guide > Cube Building and Modifying Examples > Setting Identity Driven Security. It doesn’t show it used within a larger MDX expression however.

In my example I want to use the normalized user id to choose the appropriate member of the DimSalesPerson dimension, so I type the following into the Build Formula dialog’s Expression Text field and click the OK button.

{[DimSalesPerson].[All Sales People].[SUB::SAS.Userid]}

Tip: if you want help in working out the syntax for this filter, open the OLAP cube in SAS Enterprise Guide, use point-and-click to filter in the slicer on an example user id in the appropriate dimension. When the table looks like it displays data for a single user, view the MDX:

SELECT CrossJoin({[DimTime].[All Time].Children }, {[Measures].[SaleAmountSUM] }) ON COLUMNS,
{[DimGeo].[All States].Children } ON ROWS
FROM [TransactionsCube]
WHERE ([DimSalesPerson].[All Sales People].[BILLY@MYDOMAIN])

You should see what you need in the MDX WHERE clause and you can replace the user id with the identity property – SUB::SAS.UserId in this case.

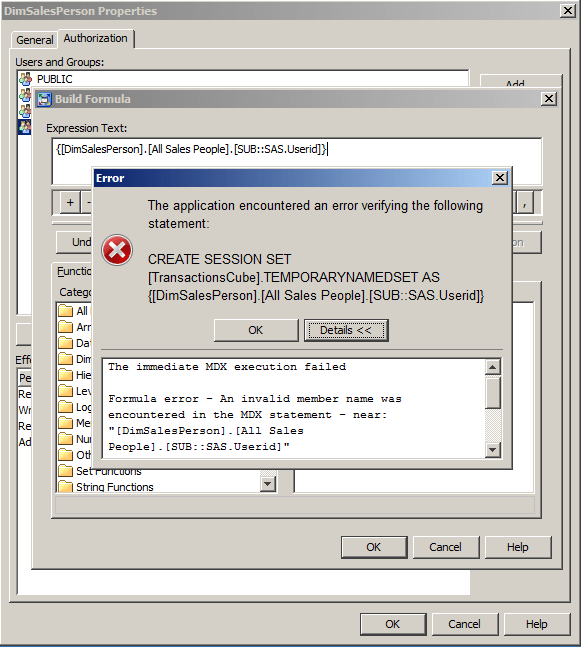

This is where, initially, I got stuck for a while. I saw the following error dialog because it was not valid MDX since SUB::SAS.Userid was not actually a real member.

It turns out this was ok, because although it was not itself a valid member, at run-time when the user queried the cube it was replaced with the real member value (e.g. BILLY@MYDOMAIN) and became valid MDX (assuming of course that BILLY@MYDOMAIN was a member!).

Tip: How can I tell whether the syntax error is due to the placeholder or the rest of the MDX? One method that I use is to start out by using a constant for a valid member (e.g. {[DimSalesPerson].[All Sales People].[BILLY@MYDOMAIN]}) instead of the placeholder. Verify the MDX syntax is ok for the constant value and that the filter works as expected when you open the cube (i.e. you see the subset of data for that constant user). If all is ok then go back and replace the constant with the placeholder (e.g. {[DimSalesPerson].[All Sales People].[SUB::SAS.Userid]})

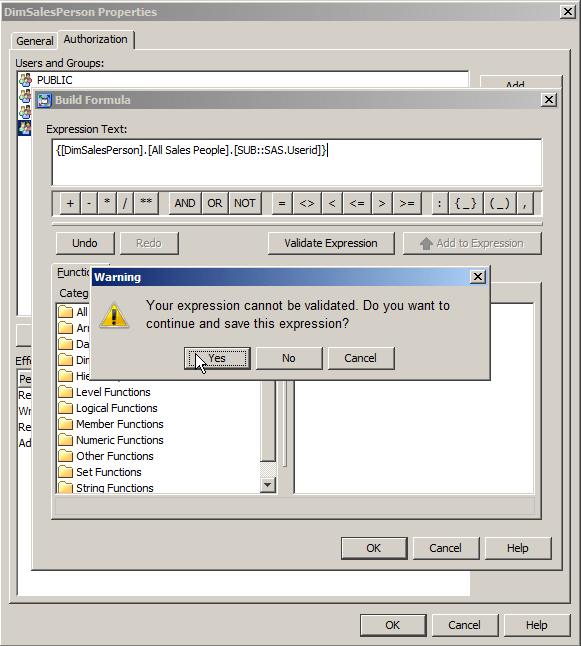

So even though I had this error I could click the OK button. I then saw the following warning dialog where I could confirm I did indeed want to save the invalid MDX expression as a permission condition by clicking the Yes button.

With the identity driven member level security filter applied, now whenever the cube was queried the user would only see the subset of data they had been granted access to.

As I mentioned earlier this is a relatively simple example. In reality you would probably want to apply the identity-driven filter to a suitable sales-people group and allow some management-level people to see larger or complete subsets of the cube. You might also want to filter based on group memberships and probably make the filter a bit more robust in case the user id doesn’t exist in the cube. Also, if you are running the third maintenance of SAS 9.2 you could also apply the permission conditions in batch using a permissions table.

The method I use to review all the SAS OLAP cube member level security permission conditions that are present in metadata is to use our Metacoda Security Plug-ins ACE Reviewer. You can click on the image below if you want to see it full size:

Finally, the following SAS usage notes can be very helpful for debugging or troubleshooting with the SAS OLAP Server:

BTW: The inspiration for this post came from a question asked on the SAS Discussion Forums > SAS Stored Processes > Thread: Role based security as input parameter, data read from oracle db on demand
